Apollo Charger Solar Kit for Trucks

Reducing fuel costs, CO2 emissions & avoiding idle time

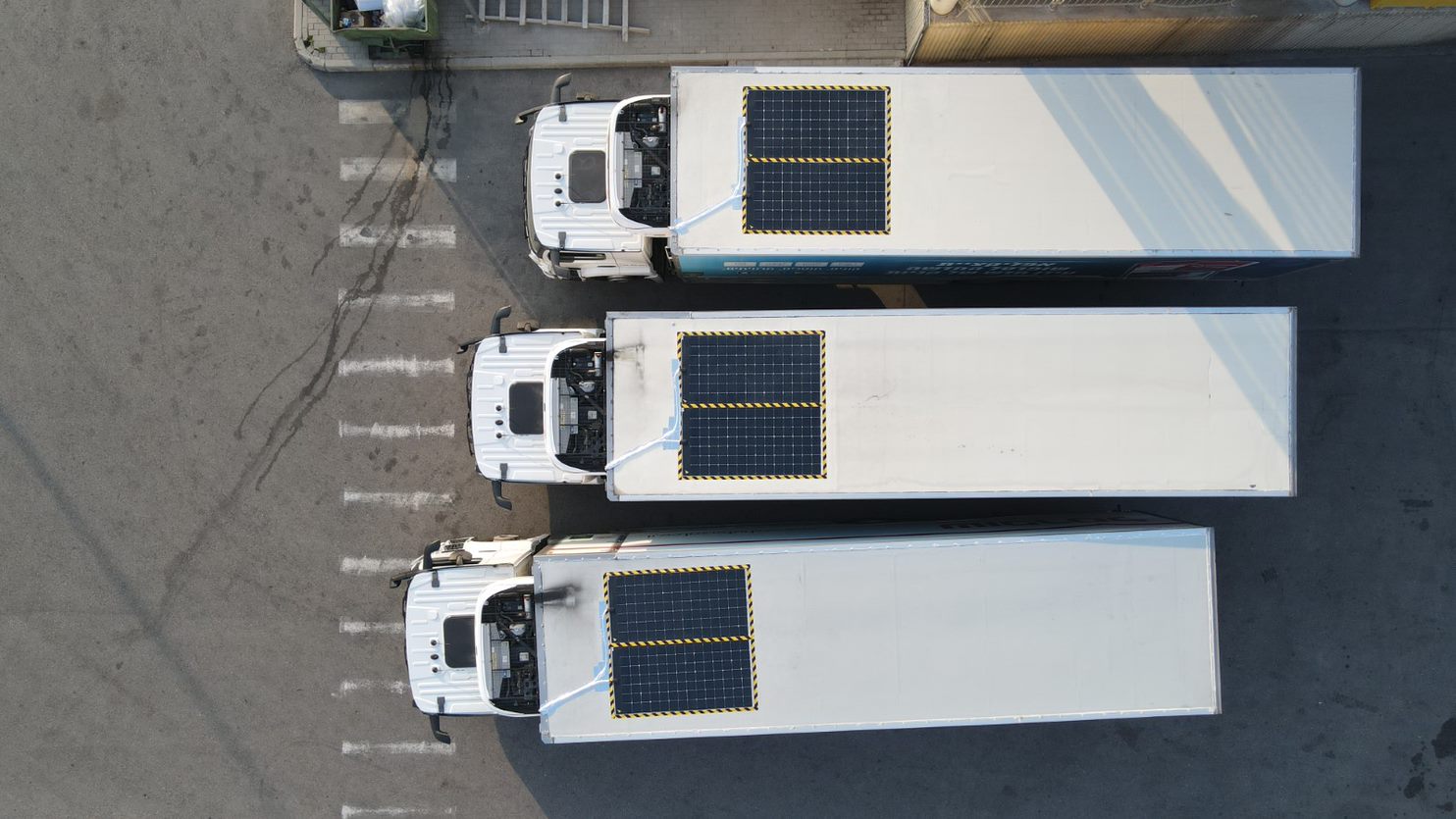

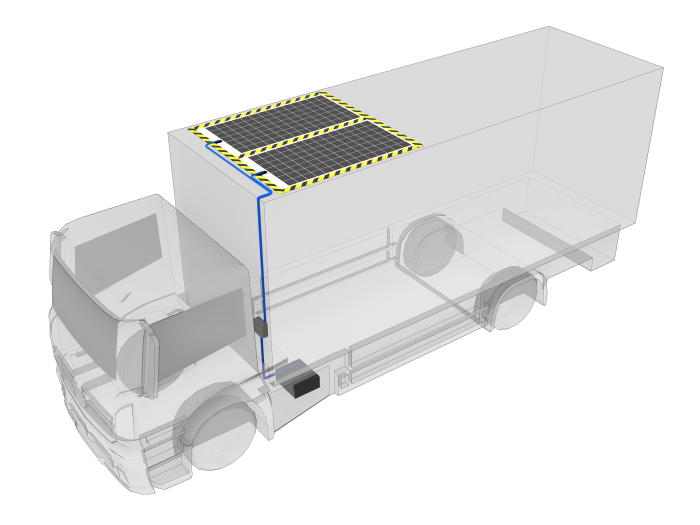

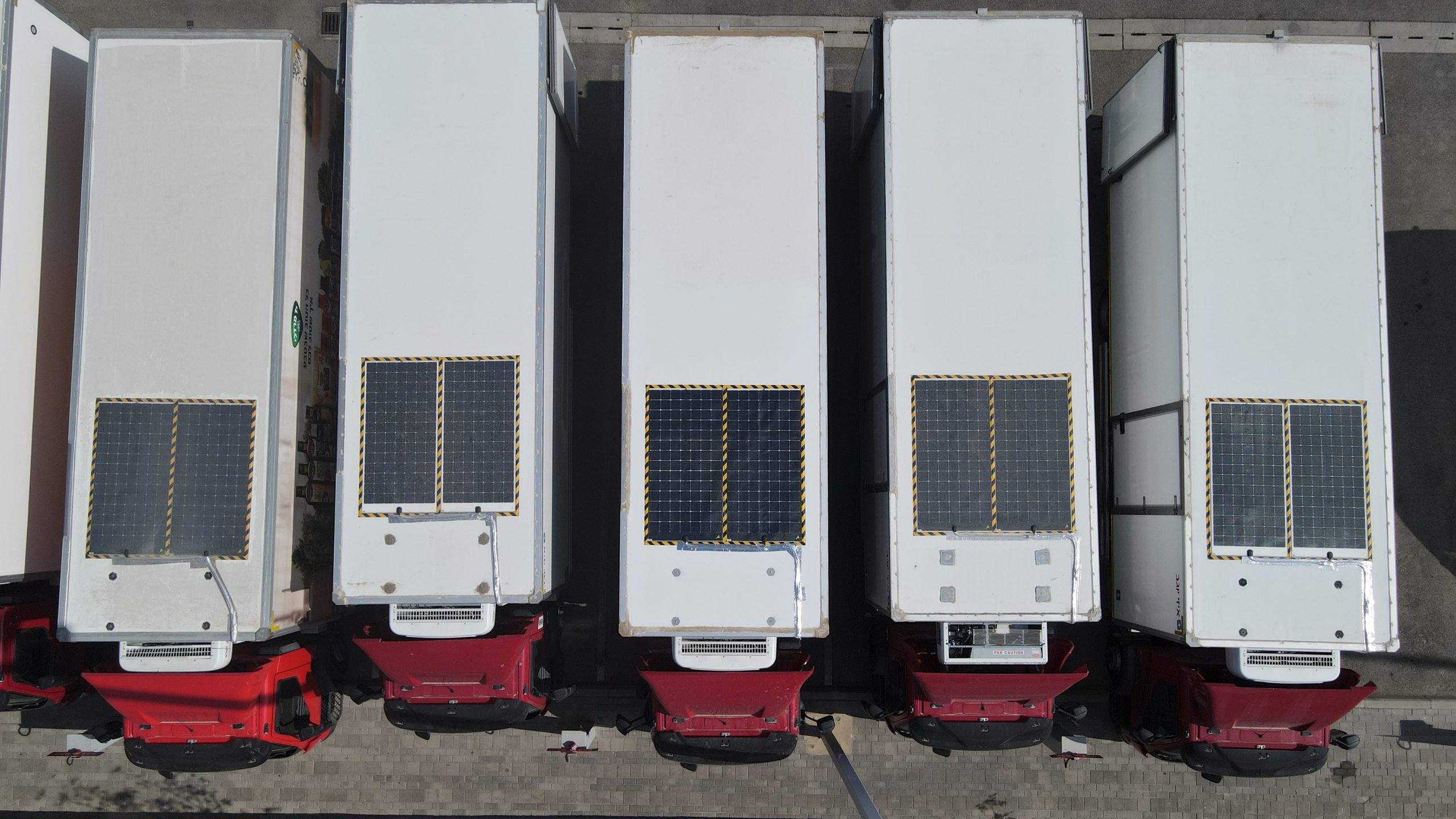

Produce Energy from Your Vehicleโ€™s Roof

Apollo Power is the worldโ€™s largest flexible solar manufacturer,
offering patented durable solutions to provide green energy
for your fleet.

Apolloโ€™s systems for Heavy Duty fleets have a proven track
record for a range of energy challenges โ€“ preventing battery
discharge, minimizing idle time, and reducing fuel consumption
and CO2 emissions, with fast ROI.

3-8%

Reduction of fuel
cost and 3.1 tons of
CO2 emissions per
vehicle annually

12-18 months

quick return on investment

1000+

experience with installed systems worldwide

Druck

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

MAIN BENEFITS & KEY FEATURES

Ultra Lightweight

Less than 15 kg additional weight for the full system

All-Weather Module

Tested and certified for all
weather conditions, including
snow and hail

Extend Battery Life

Eliminate downtime, reduceย maintenance
and extended battery life by 1.5

The Safest Solar Panel

Flexible cell technology with enhanced micro crack tolerant caused by the vehicle’s vibrations

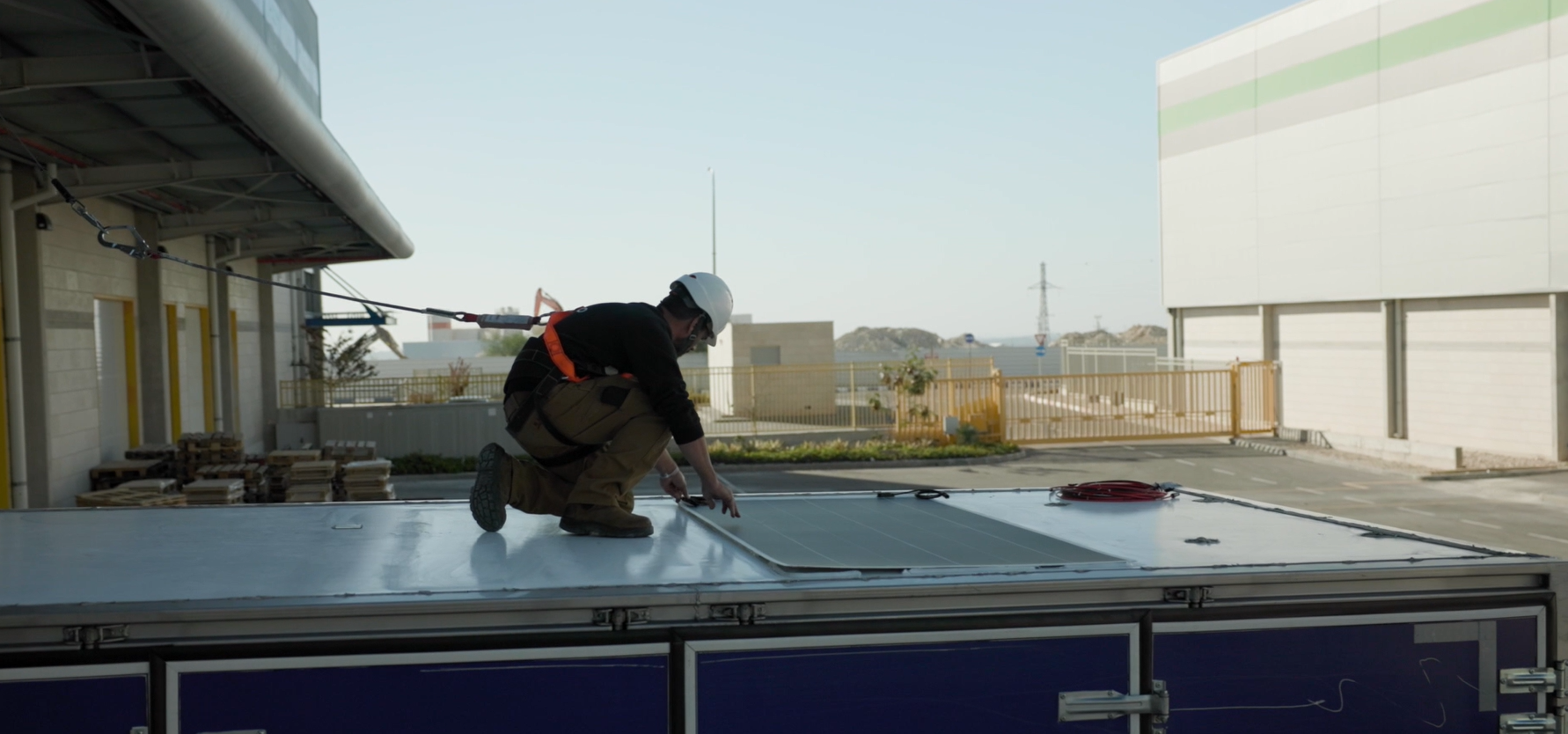

Easy & Fast Installation

Less than 2 hours of installation and zero maintenance

Join the Best

Apollo is partnered with global leaders such as VW, Audi, Lippert and ZF and won the 2024 Smarter E-mobility Award

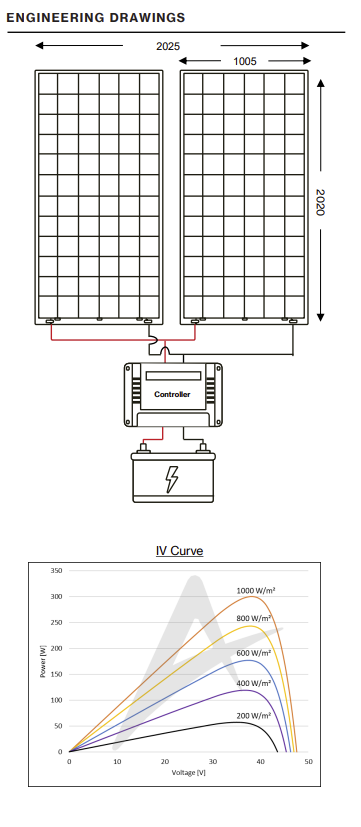

PV System specification

STC 1,000 W/sqm, (25 ยฑ 2)ยฐC, AM 1.5

Maximum Power (Pmax)

620ยฑ5% W

Maximum Power Voltage (Vmp)

37.6 V

Maximum Power Current (Imp)

16.5 A

Open Circuit Voltage (Voc)
47.5ยฑ5% V
Short Circuit Current (Isc)

18.2ยฑ5% A

Moule IP Rating

Moule IP Rating

Dimensions (mm)

2020X2025X2.2 (JB height dimension โ€“ 14.8 mm)

System Specification

Controller Type

Victron - MPPT Charge Controller

Battery voltage

12/24V

Rated charge current

30 A

Operating temperature
-30 to +60 ยฐC (full rated output up to 40 ยฐC)
Controller Safety Standards

EN/IEC 62109-1, UL 1741, CSA C22.2

IP Rating

IP43

Data Access

Bluetooth Connection

Monitoring System (optional)

Victron โ€“ global link 520

CBOX dimensions

200X200X100 mm

Solar Installation method

Adhesive to surface

Packaging Configuration

Boxes for Kit 2

2

Kits per Pallet

12

Kits per 40โ€™ Container

252

Pallet dimensions LxWxH (mm)
2080X1080X2300
Part 1 Box (Modules) Weight (Kg)

18.6

Part 2 Box (Controller + cabling) Weight (Kg)

4.7

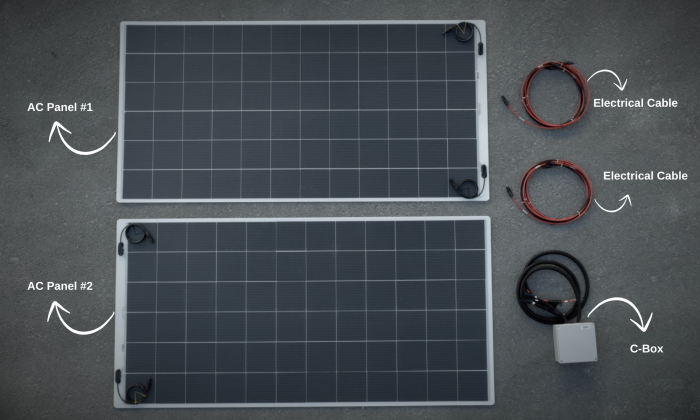

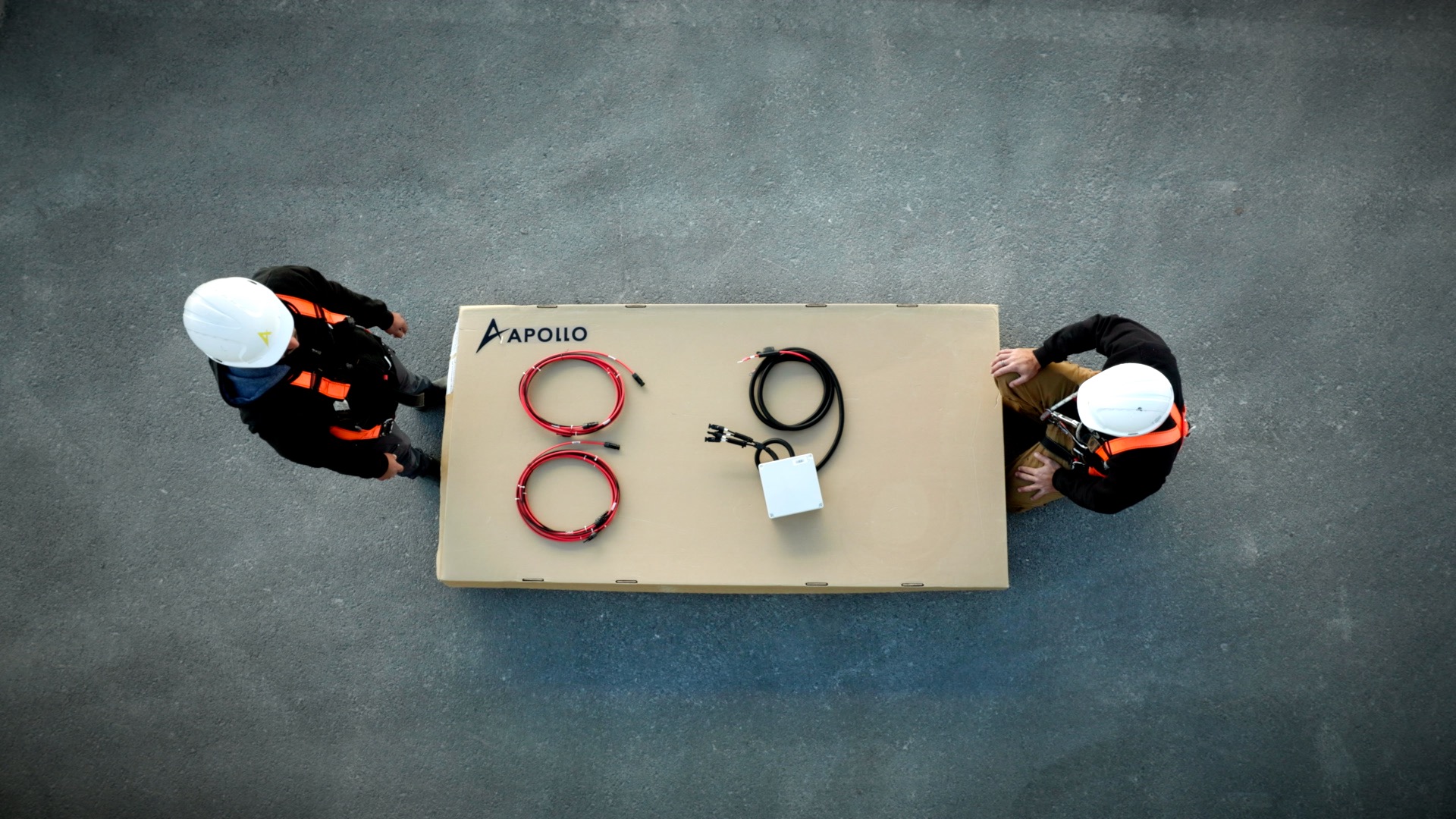

Kit 1

Reduce Fuel Costs with Flexible Solar Panels for Trucks

The escalating fuel prices, along with environmental concerns, are driving manufacturers to pursue sustainable, economical alternatives for trucking solutions. The advanced solar panel technology developed by Apollo presents a solution that decreases truck fuel usage while improving fleet operations.

The flexible, lightweightย solar panels for trucksย developed by Apollo convertย renewable energyย while being eco-friendly and boosting fleet efficiency. But how exactly does it work? Letโ€™s break it down.

Why Choose Apolloโ€™s Solar Panels for Trucks?

Apollo Power is not a traditional solar panel installer. Instead, it develops and supplies cutting-edge solar technology, commercial producing, providing support and installation services. Hereโ€™s why Apolloโ€™sย solar energyย solutions are a must-have for truck fleets:

Fuel Savings

Solar panels manufactured by Apollo Systems decrease fuel consumption from 3% up to 8%. Extensive fuel savings have become possible since trucking companies that operate many vehicles daily can significantly reduce their expenses.ย

Quick Installation

The Apollo Charger Solar Kit can be installed in less than two hours, ensuring minimal downtime for your fleet.ย

Improved Fleet Productivity

Beyond fuel savings, Apolloโ€™sย solar panels for trucksย enhance fleet productivity. They provide auxiliary power that supports back lifts, electronic curtains, refrigeration units, and other essential equipment, even when the truck is idle.ย

Lightweight Design

Apolloโ€™sย flexible solar panelย technology minimizes weight while maximizing efficiency, unlike traditional truck solar panels. Traditionalย solar panels for trucksย are bulky and quite heavy, making it impossible to carry a truckโ€™s full load capacity while it benefits from theย renewable energyย from solar panels.

Fast ROI

The most important factor for fleet operators is the return on their financial investment. Solar panel solutions from Apollo create swift returns on investment as trucking organizations start to recover their costs in 12 to 18 months.ย

How Apolloโ€™s Flexible Solar Panel Technology Works

Apolloโ€™sย solar powerย solutions utilize advancedย solar cellsย designed for durability and adaptability. Hereโ€™s how they work:

Energy Capture

High-efficiencyย solar cellsย convert sunlight energy into electricity as they capture solar rays.ย Solar cellsย enable maximum power absorption in both bright and limited lighting environments to provide a continuous energy supply throughout daily operations.

Charge Controller Management

A built-inย charge controllerย regulates the power flow, ensuring the truckโ€™s battery remains at optimal levels. This system prevents overcharging and ensures steady energy distribution to support essential truck functions.

Power Distribution

The energy generated supports auxiliary power needs, reducing strain on the engine and improving efficiency. This leads to lower fuel consumption, less mechanical wear, and overall enhanced performance.ย

Key Features of Apolloโ€™s Solar Solutions for Trucks

Apolloโ€™sย solar energyย solutions offer a range of benefits tailored specifically for trucking fleets. Hereโ€™s what makes them stand out:

1. Flexible and Durable Design

  • It can be installed on curved and lightweight surfaces.
  • Resistant to vibrations, extreme weather, and heavy loads.
  • Ensures long-term performance with patented cell technology.

2. Fuel and Cost Savings

  • Reduces dependency on fuel-powered auxiliary systems.
  • Lower operating costs emerge because reduced fuel usage decreases overall expenses.
  • The business usually produces returns on investment within 12 to 18 months.

3. Enhanced Fleet Performance

  • Supports electronic equipment such as lifts and cooling systems.
  • Keeps batteries charged, reducing downtime and maintenance needs.
  • Helps truck operators comply with anti-idling regulations.

4. Environmentally Friendly

  • Lowers greenhouse gas emissions by reducing fuel consumption.
  • Utilizesย renewable energy, making trucking more sustainable.
  • Contributes to corporate sustainability goals.

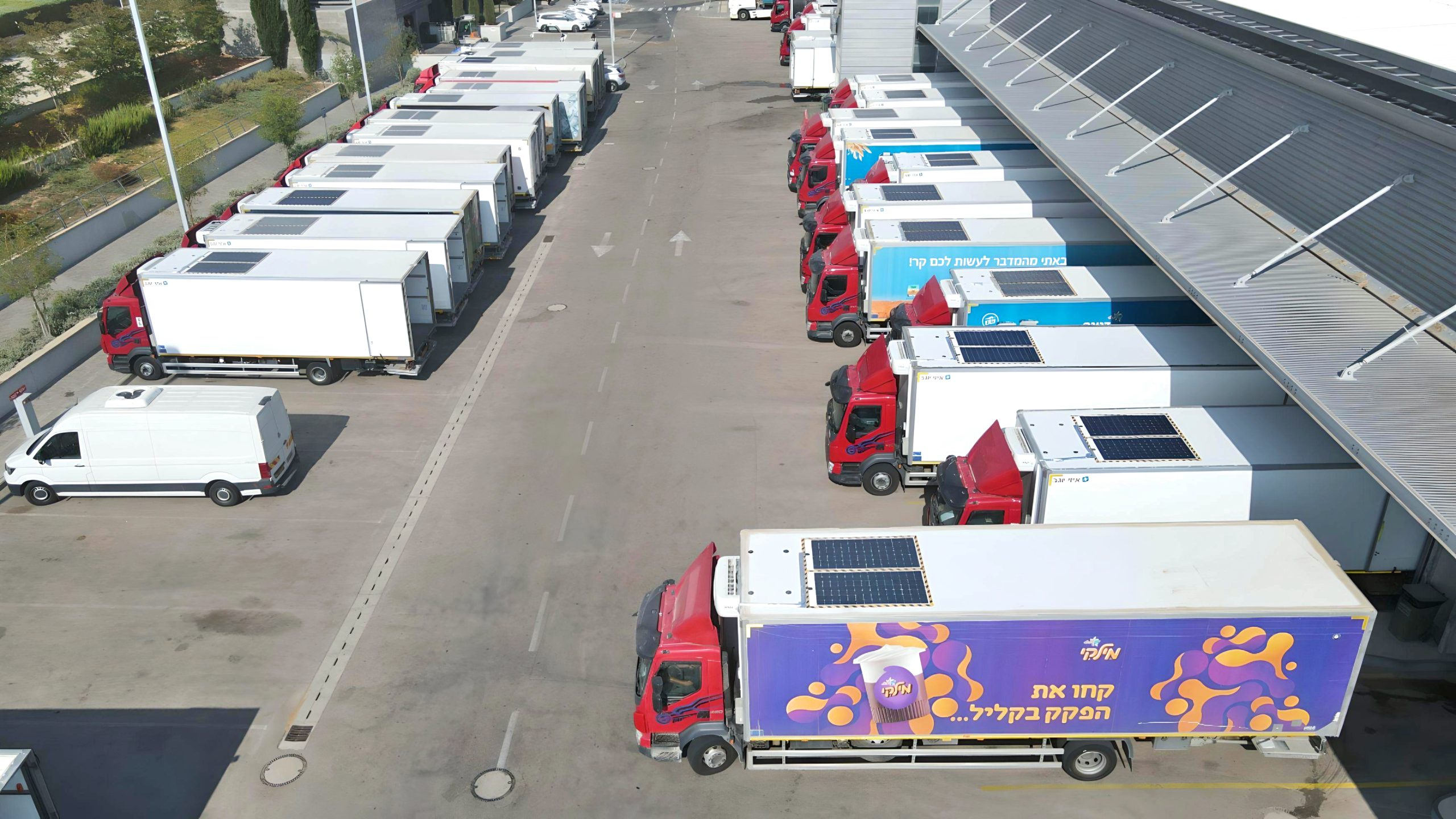

Apolloโ€™s Solar Panels Benefit Trucking

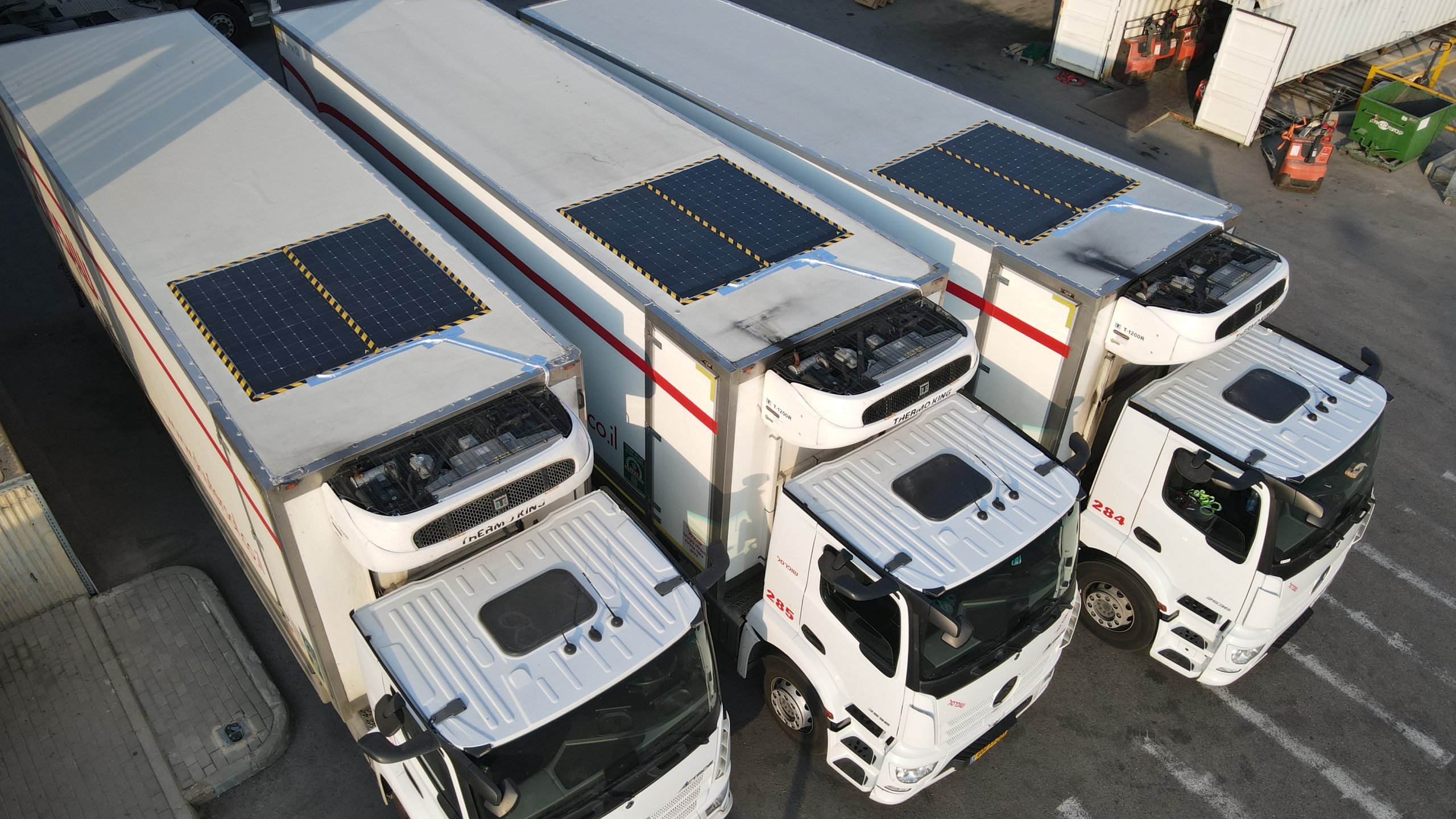

Many trucking companies are already leveraging Apolloโ€™s solar panels to improve efficiency.ย Solar panels from Apollo enable refrigerated trucks to preserve their cooling technology while the engine remains inactive, thus benefiting the distribution of perishable items.ย

Businesses adopting Apolloโ€™s solar systems obtain an advantage over competitors through their dedication to eco-friendly transportation. The market now uses sustainability in trucking services as a major differentiating factor because stakeholders and clients strongly favor green supply chain partners.

Take the Next Step Toward Solar-Powered Trucking

Trucking operators who invest in Apolloโ€™s solar panels for vehicles can decrease their expenses and optimize their operational efficiency while working toward environmental sustainability.ย

Ready to upgrade your fleet? Contact Apollo Power today and take the first step toward a sustainable trucking solution!

FAQs

Want to learn more? Explore our answers to the most common questions about the Apollo Charger and discover how it can fit your needs

How much energy do Apolloโ€™s solar panels generate?

Apolloโ€™s solar power technology provides 10-15 extra km of range per day for electric and hybrid trucks. The exact output depends on sunlight exposure and battery capacity.

Can Apolloโ€™s solar panels be installed on any truck?

Yes! The flexible solar panel design adapts to most truck models, making installation easy and versatile.

Will the panels work in cloudy or cold conditions?

Yes, Apolloโ€™s solar solutions function efficiently in various weather conditions, including low-light environments.

How do Apolloโ€™s solar panels compare to traditional solar solutions?

Apollo's solar panels are also lighter, much more flexible and easier to put up compared with traditional solar-based solutions. Their innovative design ensures minimal weight impact while delivering maximum energy efficiency.

Is there maintenance required for Apolloโ€™s solar panels?

The Apollo solar panel system needs minimal routine maintenance attention. Maintaining clean panels by regularly removing dust and debris will maximize their operating efficiency. Your business gains both financial advantages and environmental benefits by implementing Apollo Solar panels for trucks since these innovations foster clean and sustainable energy production in trucking operations.
