Apollo Charger Solar Kit for Buses

Reducing fuel costs, CO2 emissions & avoiding idle time

Produce Energy from Your Vehicle’s Roof

Apollo Power is the world’s largest flexible solar manufacturer,
offering patented durable solutions to provide green energy
for your fleet.

Apollo’s systems for Heavy Duty fleets have a proven track
record for a range of energy challenges – preventing battery
discharge, minimizing idle time, and reducing fuel consumption
and CO2 emissions, with fast ROI.

3-8%

Reduction of fuel
cost and 3.1tons of
CO2 emissions per
vehicle annually

12-18 months

quick return on investment

1000+

experience with installed systems worldwide

Druck

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

MAIN BENEFITS & KEY FEATURES

Ultra Lightweight

Less than 15 kg additional weight for the full system

All-Weather Module

Tested and certified for all
weather conditions, including
snow and hail

Extend Battery Life

Eliminate downtime, reduce maintenance
and extended battery life by 1.5

The Safest Solar Panel

Flexible cell technology with enhanced micro crack tolerant caused by the vehicle’s vibrations

Easy & Fast Installation

Less than 2 hours of installation and zero maintenance

Join the Best

Apollo is partnered with global leaders such as VW, Audi, Lippert and ZF and won the 2024 Smarter E-mobility Award

PV System specification

STC 1,000 W/sqm, (25 ± 2)°C, AM 1.5

Maximum Power (Pmax)

620±5% W

Maximum Power Voltage (Vmp)

37.6 V

Maximum Power Current (Imp)

16.5 A

Open Circuit Voltage (Voc)
47.5±5% V
Short Circuit Current (Isc)

18.2±5% A

Moule IP Rating

Moule IP Rating

Dimensions (mm)

2020X2025X2.2 (JB height dimension – 14.8 mm)

System Specification

Controller Type

Victron - MPPT Charge Controller

Battery voltage

12/24V

Rated charge current

30 A

Operating temperature
-30 to +60 °C (full rated output up to 40 °C)
Controller Safety Standards

EN/IEC 62109-1, UL 1741, CSA C22.2

IP Rating

IP43

Data Access

Bluetooth Connection

Monitoring System (optional)

Victron – global link 520

CBOX dimensions

200X200X100 mm

Solar Installation method

Adhesive to surface

Packaging Configuration

Boxes for Kit 2

2

Kits per Pallet

12

Kits per 40’ Container

252

Pallet dimensions LxWxH (mm)
2080X1080X2300
Part 1 Box (Modules) Weight (Kg)

18.6

Part 2 Box (Controller + cabling) Weight (Kg)

4.7

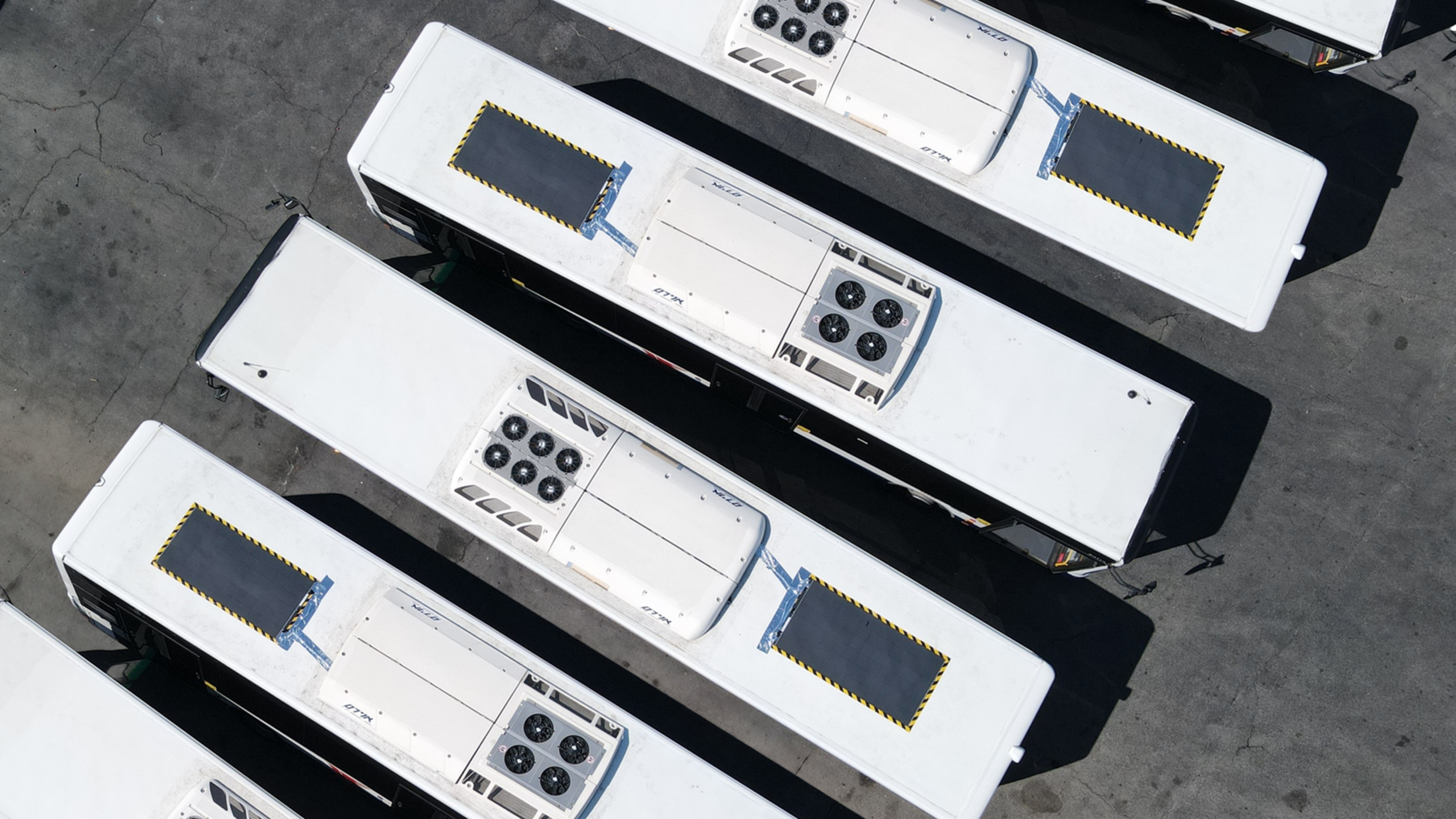

BUSES

Solar Panels for Buses by Apollo Power

The solar industry is growing rapidly, especially in rooftop installations. This boom is because of subsidies given by governments to those interested in lessening energy costs while generating profits. However, most rooftops cannot support the regular solar system due to weight or structural limits, or for fear of causing drills. Buses require another kind of solar solution—one that is light, flexible, and easy to install.

This is where Apollo Power’s technology fits in. Being a solar technology company, Apollo Power provides cutting-edge, lightweight and highly adaptable solar panels that can be integrated into surfaces—such as buses. These advanced solar panels for buses provide more flexibility, with the capability to integrate even on curved surfaces or irregular ones.

Do We Actually Need Solar Panels for Buses?

Buses are the most vital part of city transport. However, they use a tremendous amount of fuel and emit emissions that can pollute the environment. Apollo Power’s innovative solar solution is an environmentally friendly and most advanced solution that is most efficient with least harm to the environment. By reducing dependence on fossil fuels, it also helps achieve sustainability objectives by local governments. Governments are increasingly focusing on green initiatives, making solar buses a valuable part of future public transport solutions.

Main Advantages

  • Reduced Fuel Costs
    Solar power drives auxiliary systems, saving fuel.
  • Increased Battery Life
    Maintains batteries at peak charge, minimizing wear and tear.
  • Lightweight Construction
    Weighs less than 10kg, adding little weight to vehicles.
  • Easy Installation
    Instant retrofit solution involving zero downtime.
  • Compliance
    Accommodates meeting anti-idling and noise regulatory requirements. The use of solar panels also reduces maintenance needs, further lowering operational costs.

Apollo Power’s Superior Solar Technology

Apollo Power’s lightweight and versatile solar cells lead the market because they provide various benefits over conventional rigid panels. Moreover, they utilize proprietary polymer-based materials rather than traditional heavier panels. In addition to that, these offer the assurances of durability and high efficiency plus convenient integration with curvatures and weight-restrictive substrates.

Unlike conventional rigid solar panels, Apollo Power’s panels are designed to endure high temperatures, shaking, and knocks more effectively. Their ability to bend and conform to different shapes makes them ideal for unconventional surfaces.

How Do Solar Panels of Apollo Power Work?

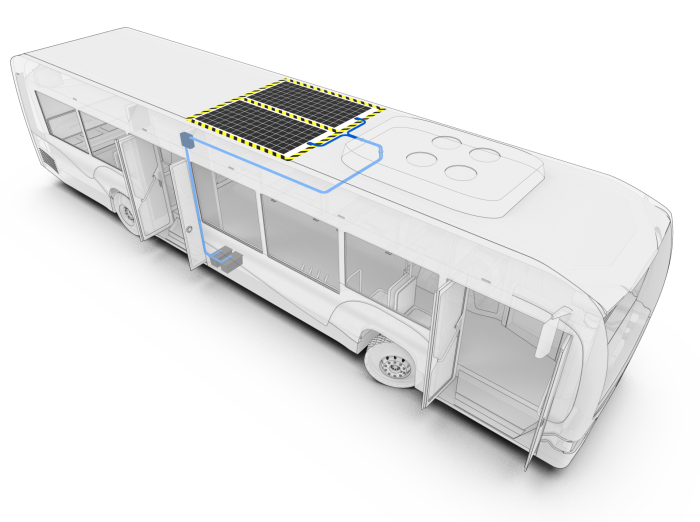

The system utilizes sunlight effectively to convert it into electric power and stores it within onboard batteries. Then this stored energy can be used for powering lights, electronic doors, air conditioners, as well as auxiliary systems, conserving fuel use and decreasing the costs of running them. Apollo Power’s technology ensures efficient energy conversion, allowing for consistent operation even in variable sunlight conditions.

Installation Process

The installation process of solar panels for buses consists of four main steps including:

  1. Fleet Assessment: Energy consumption is analyzed by experts of Apollo Power in order to calculate panel position to achieve utmost efficiency.
  2. Custom Fit: Shapeable, lightweight panels are molded to conform to the bus’s exterior without sacrificing aerodynamics.
  3. Seamless Integration: Panels integrate into the bus’s electrical system to complement battery power.
  4. Rigorous Testing & Deployment: Systems are rigorously tested for effectiveness, longevity, and performance before actual deployment.

Other Uses of Apollo Power’s Solar Technology

Apollo Power’s solar solutions with flexibility go beyond buses. Its technology is utilized across industries, including:

  • RV Roof Mount Solar Panels: Empowering off-grid travel with renewable energy.
  • Solar Awnings: Shading while powering homes and businesses.
  • Floating Solar Systems: Make use of lakes and reservoirs for efficient energy production.
  • Solar Pavements: Changing sidewalks and bicycle lanes into power-generating surfaces.

This innovative technology provides sustainable solutions for multiple industries, from transportation to residential and commercial sectors.

Switch Your Fleet to Solar Power

Apollo Power is leading the way to green public transportation with cutting-edge solar technology. By combining lightweight, high-efficiency solar panels for buses, bus operators can reduce operating costs, extend battery life, and contribute to a greener world.

Call Apollo Power today to see how our groundbreaking solar technology can transform your fleet!

FAQs

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Suspendisse varius enim in eros elementum tristique.

What certifications has Apollo Power obtained?

Apollo’s modules passed IEC61215/61730 and UL61730. Every new generation module is recertified.

Which institute certified the module?

Since product quality is one of the company’s main goals, all modules are tested either in Europe at TUV Rheinland or in the U.S.

What is the efficiency and capacity of the module?

17%, the highest efficiency for a flexible solar module, and 300 Watt peak (Wp) per module.
